Suction Feeding Screw Locking Machine 4axis with Hiwin Guide
Introduction:
The screw machine is a 4 axis screw lock machine, with double working station, single head and single feeder, the whole machine composed of a feeding system and a screw driver locking system, the feeding part responsible for screw-arrangement machine, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. This screw lock machine is a automation equipment, widely used in the electronics industry. Compatible for screws from M1 to M6, other special screws, also can be customization.
Specification:
| Model | HS-SL5331 |
| Production name | 4Axis Automatic Screw Locking Machine |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s |
| Z axis moving speed | Closed loop motor: 1-300mm/s |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG |
| Z axis max load | Closed loop motor: 3KG |
| Power supply | AC110V/220V, 50/60Hz |
| Repeat accuracy | ±0.02mm |
| Document support | CAD CorelDraw |
| Suitable screws | M1-M6 |
| Machine dimension | 746*585*800mm |
| Machine weight | 65kg |
Main parts brand
1, Motor: Shinano
2, Guide: Hiwin
3, Photoelectric switch: Omron
4, Power supply: Meanwell
Features
1, Suction type feeding, with single screw feeder and single locking head.
2, Desktop and visible operation, can connect the automatic production line.
3, 4 Axis operation, moving range 500*300*300*100mm.
4, Support multiple screw bins in suction mode.
5, Double working station, improve the production efficiency and reduce labor cost.
6, Easy adaptability for M1-M6, just by changing screw guider(Customization available).
7, Easy operation, operator can operate several machines at the same time.
8,The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.
|
|

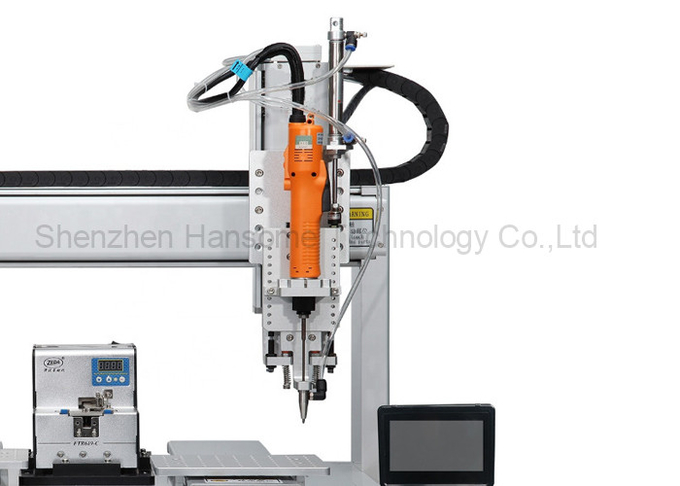

Suction Feeding Screw Locking Machine 4axis with Hiwin Guide Images
|
