PCB Handling Equipment with Sticker Roller Eliminate Foreign Objects Static Elimination Function

  • 1
  • 2

Brand Name : HSTECH

Model Number : HS-460BC

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 7~9 work days

Packaging Details : Wooden package

Product Name : PCB Surface Dust Cleaner

Color : White

Power Supply : AC100-230V

PLC : MITSUBISHI

Relay : Schneider

Optoelectric Switch : OMRON

Ion Wind Bar : Keyence

Condition : New

Contact Now

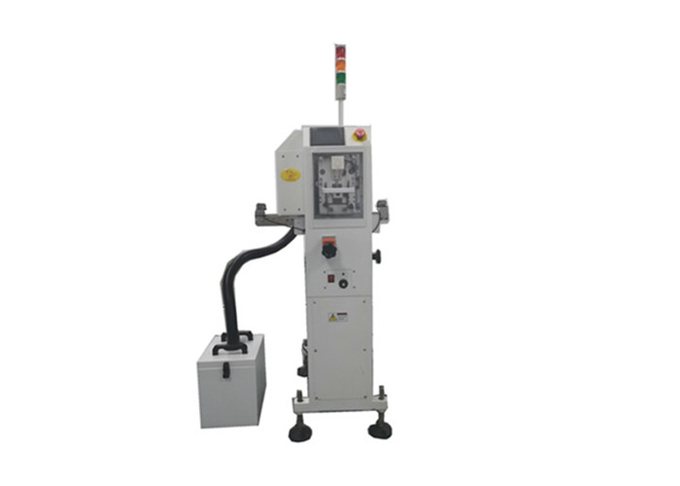

Touching PCB Surface Dust Cleaner Keyence with brush and sticker

Introduction:

This machine, which features a brush and a sticker roller, is used between the PCB loader and screen printer to remove dust and static electricity from the surface of the PCB.

Features:

  1. Incorporates an ultra-high-speed anti-static spiral brush alongside a vacuum extraction cleaning system.
  2. Tailored for SMT printing, it effectively removes contaminants from the PCB board's backside, both before and after AI insertion.
  3. Equipped with a static elimination feature to entirely eliminate electrostatic interference.
  4. Implements a touch-cleaning technique, achieving a cleanliness level exceeding 99%.
  5. Designed with a cleaning roller to guarantee efficient, consistent, and durable cleaning outcomes.
  6. Features a mechanical parts extraction design for simplified maintenance.
  7. Offers a bilingual interface display in English and Chinese, facilitating convenient and user-friendly operation.

Specification:

Model HS-250BC HS-330BC HS-390BC HS-460BC
PCB dimension (50*50)~(350*250) (50*50)~(460*330) (50*50)~(530*390) (50*50)~(530*460)
Machine dimension 555*820*1350 555*900*1350 555*960*1350 555*1030*1350
Weight 80kg 90kg 100kg 110kg

PCB thickness 0.4~5mm
Power supply AC100~230V,single phase,300A
Air supply 0.4~0.6Mpa
Cleaning brush top 2 pcs
Sticker roller top 1 pc
Brush ESD,high precision brush
If with dust collector Yes
Transport speed 0~9m/min,adjustable
Transport height standard 900±20mm
Direction L to R, or R to L,optional
Cycle time Around 8s
